Epson SureColor V4000
A1+ Flatbed UV Signage & Merchandise Printer
The Epson SureColor V4000 is a compact A1+ UV flatbed printer for signage, promotional products, packaging mock-ups, décor and custom merchandise. Its front-access, space-saving design brings professional UV flatbed production to even the most space-limited workspaces.
Or call us on +61 7 3412 0285
Key Features
- Premium quality imaging: PrecisionCore MicroTFP printheads and a 10-colour UltraChrome UV ink set deliver vibrant colours, smooth gradations and sharp text down to 2 pt.
- Flexible output: Supports substrates up to 980 x 700 mm and up to 200 mm thick, including acrylic, wood, canvas, cardboard, ceramic and packaging components.
- Efficient production: White, Colour and Varnish print simultaneously in a single pass, reducing turnaround times.
- Varnish and texture effects: Create matte, gloss and textured finishes, with White and Varnish usable alone or together. The Epson Original Texture Library provides ready-made texture patterns.

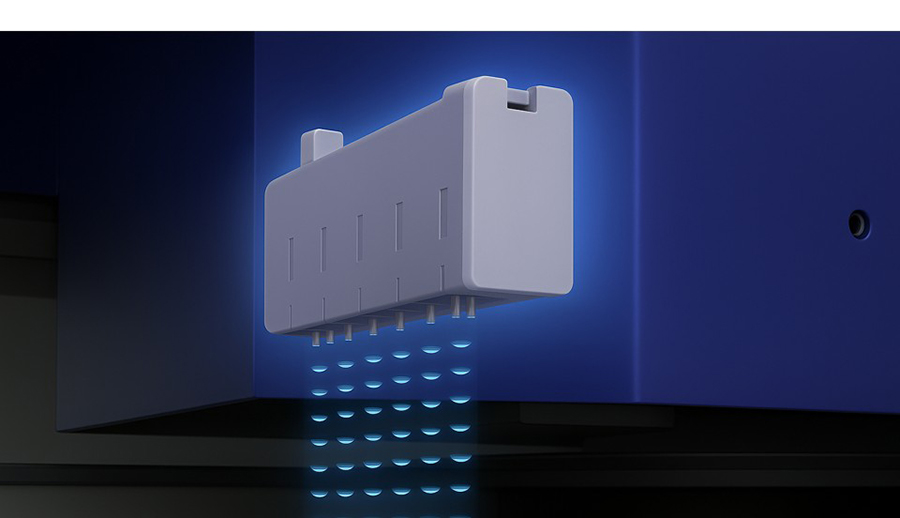

- Simple to operate: Automatic media height adjustment, media crash (jam) detection, an integrated ioniser to reduce static and dust, and front-access operation.
- Low maintenance: Automated printhead maintenance reduces operator intervention and maximises uptime.
- Easy integration: Standard power supply, USB 3.0 connection and Epson Edge Print Pro RIP software included.
- Epson Cloud Solution PORT: Live production monitoring, reporting and job cost accounting.
Ink and Print Technology
10-colour UltraChrome UV ink: Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Grey, Red, White and Varnish, supplied in 1 L bottles. Three 1.33" PrecisionCore MicroTFP printheads print at up to 600 x 1200 dpi with a minimum droplet size of 4.2 pl.
Print Bed

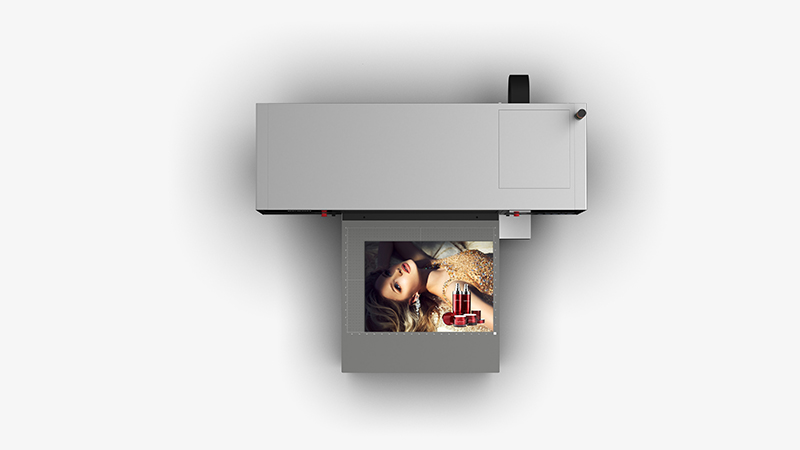

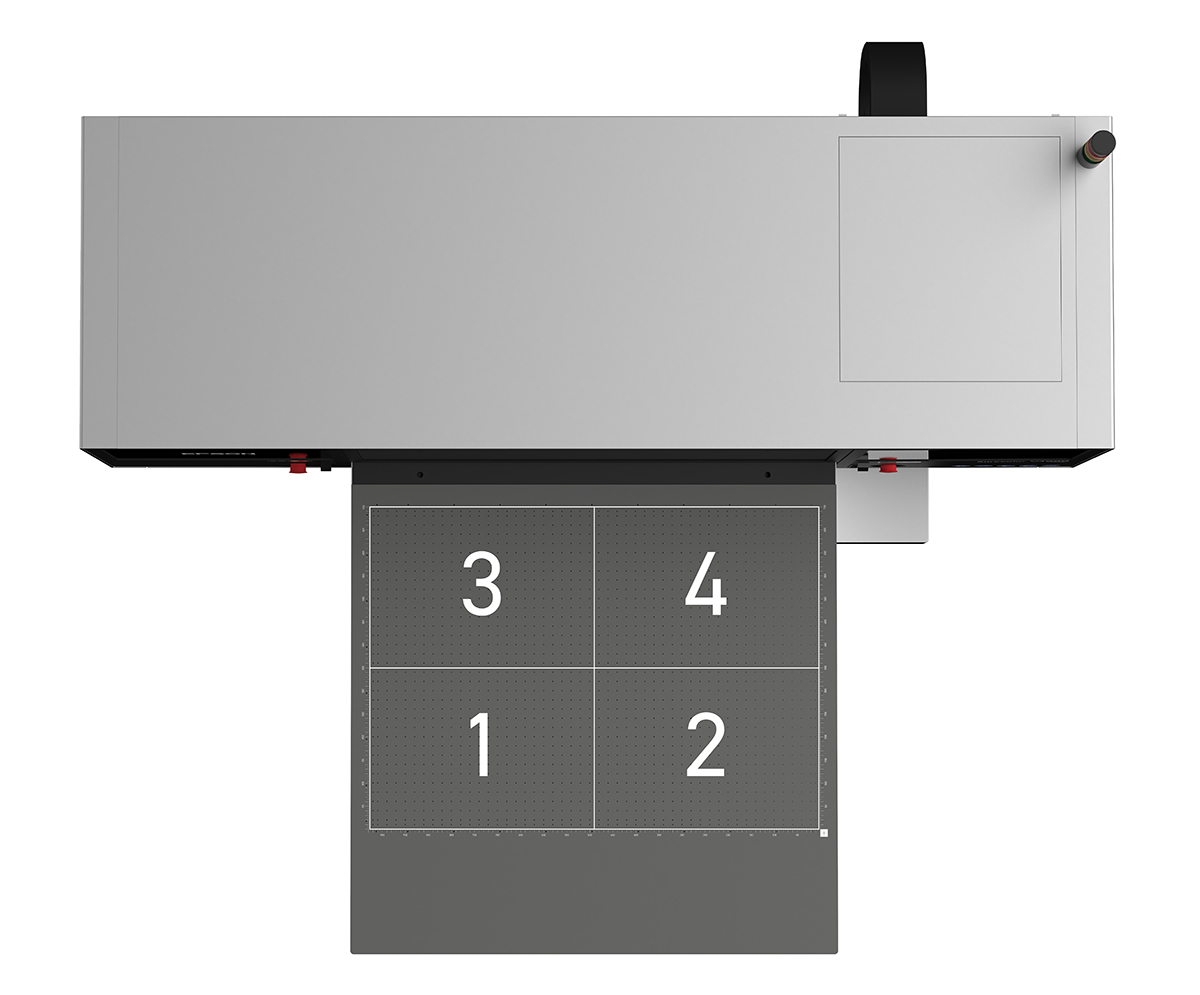

The 980 x 700 mm bed can hold two A2 sheets, four A3 sheets or mixed sizes. A multi-zone vacuum and positioning pins hold media firmly in place. Epson UV transfer film workflows also cover curved and irregular surfaces.
Specifications
| Product | Epson SureColor V4000 – A1+ UV |
|---|---|
| Printhead | 3 x 1.33" PrecisionCore MicroTFP |
| Print mode | Uni & bi-directional |
| Nozzle configuration | Colour: 400 nozzles per colour; White: 3200 nozzles; Varnish: 3200 nozzles |
| Maximum resolution | 600 x 1200 dpi |
| Minimum ink droplet size | 4.2 pl |
| Ink | UltraChrome UV – CMYK, Lc, Lm, Grey, Red + White + Varnish (1 L bottles) |
| Print speed (colour layer)* | High Speed: 10.9 m²/h (300 x 600 dpi); Speed: 6.7 m²/h (600 x 600 dpi); Production: 4.6 m²/h (600 x 900 dpi); Quality: 2.9 m²/h (600 x 1200 dpi); High Quality: 0.9 m²/h (600 x 1200 dpi) |
| Media size | Up to 980 x 700 mm |
| Media thickness | Up to 200 mm |
| Media weight | Up to 50 kg (incl. jig) |
| Interface | USB 3.0 |
| Software | Epson Edge Print Pro / Epson Edge Dashboard / Epson Cloud Solution PORT / Communication Driver / Epson UV Flatbed Controller |
| OS compatibility | Windows 10/11 (64-bit) or later |
| Operating temperature / humidity | 15 – 35 °C / 20 – 80% (no condensation) |
| Power supply | AC 100 – 240 V, 50/60 Hz, 10 A |
| Power consumption | 1100 W operating / 500 W ready / 3.4 W sleep |
| Operating noise | 60 dB |
| Dimensions (W x D x H) | 2097 x 1830 x 1470 mm, 620 kg (no ink or media) |
*Figures are for reference only, based on standard applications and quality levels with output produced via Epson Edge Print Pro. Actual performance depends on the application and quality requirements.
What's in the Box
Printer, set of 1 L ink bottles, 1 x 2 L Waste Ink Bottle, 1 x Wiper Unit, 1 x Mist Filter, 1 x 500 ml UV Cleaning Solution, 38 x Positioning Pins, AC power cable, screw driver, USB 3.0 cable, cleaning sticks, Epson Edge Print Pro software and manual.
Warranty and Support
The printer carries a 1-year onsite warranty covering parts, labour and the printhead, with free onsite service in metro areas (regional locations attract an additional travelling charge). Cover can be extended to up to 5 years with optional Epson CoverPlus (SCV40003Y: 1-yr onsite warranty + 2-yr CoverPlus; SCV40005Y: 1-yr onsite warranty + 4-yr CoverPlus). CoverPlus requires activation of Epson Cloud Solution PORT. Warranty terms depend on correct maintenance and the use of genuine Epson consumables.
UV print quality is highly dependent on media selection. Extensive image testing before purchase is strongly recommended to confirm suitability for your application.
